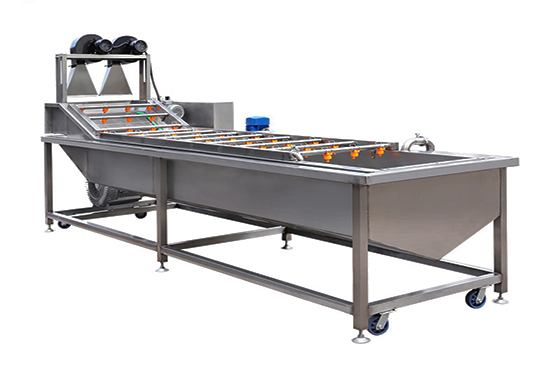

Air Bubble Washing Machine Description
The air buble fruit washing machine is mainly composed of two parts: one water bubbling tankand one elevato, which are mainlyused for cleaning fruits andvegetablestomatoes,carots,.ainger,cabage, apple,orange,mano, pineapple bery,The air bubble washing machine tankis used to fllclean water.and the elevator isused to transferthe cean uits to next stationfor soting The combination ofait blowerand water maesthe state oftumbingto remove the aodcutural residues on thesurface of fruits and vegetables,.floating mater can overlow from the overlow tank, and the sediment is discharged from the sewage outlet to achieve the purpose ofwashing. The raw fruits and vegetables are continuously pushed fonward and elevated bythe elevator.The elevator is equiped with a spray nozzle assemblyto rinse thefruits and vegetables again under high-pressure water
Bubling tank:The frame is made of 3MM stainless stel square tube, and the tank body is made by welding 2MM stainless stel plate,and is equipped with: b32 waterinlet, b76mm sewage outlet, b51 overflow outlet, b63 bubble tube and o159 six claw hole.
Elevator:The frame is made of stainles steel square tube welding,lifted by a food-grade plastic chain plate, with spray components, and equipped with a water tray.
Air Bubble Washing Machine Character
This equipment is mainly composed of a water tank,flipper, fan, etc, Use two sections of water for cleaning,separate control, independent operation,circulating waterutlzation, and automatic water control device instaled in the circulating fltering water tank.When the water level is not reached,it willbe automaticalyfiled with water.
It is made of stainless steel SUs304/28 material,which fuly meets the requirements of export food hygiene. The main stainless steel of the sink is made of 3mm thick 304stainless steel.
The device is eouilped with a buble-generating device to make the materialrol. remove the aricultural residues on the produc surface,and at the same time,you canadd an appropriate amount of chemical solution to disinfect and protet the color of fruits and vegetables. Floating mater can overlow from the overflow tank andsediment can be discharged from the sewage outlet.
The air bubble washing machine is widely used for cleaning, soaking, sterilization, and color fixation of all kinds ofruits and vegetables,Aari products,and chinese herbalmedicines.
the whole machine is frequency controlled,and the washing capacity is adusted, which has the characteristics of stable operation and long service life
The spraying pipe nozzles can be equipped on the air bubble washing tank to strengthen the washing effects.
Technical Parameter
Work flow of the bubble washing machine .
| Model | size | weight | power | capacity |
| WX-QP-2500 | 2500*1000*1300mm | 400 kg | 4.45 kW | 2T/h |
| WX-QP-3000 | 3000*1200*1300mm | 600 kg | 5.25 kW | 800 kg/h |
| WX-QP-4000 | 4000*1200*1300mm | 700 kg | 6.6 kW | 5T/h |
| WX-QP-5000 | 5000*1200*1300mm | 900 kg | 8.3 kW | 1500 kg/h |
| WX-QP-6000 | 6000*1200*1300mm | 1100 kg | 9.4 kW | 2000 kg/h |
Product Features
Advantages of Air Bubble Washing Machine
Equipped with a bubble generator to make objects tumble.
Equipped with separate filter tank and water circulation system.
Equipped with VFD to better adjust the belt speed
High-pressure air bubbles and water jets wash away dirt, sand and other residues.
Equipped with a spray section for cleaning water, which can be cleaned twice.
The object is automatically transported to the spraying part through the conveyor belt.
