Description
Discover the power of our peeling processing line designed for a diverse range of tuberous vegetables, including potatoes, pre-cut carrots, celeriac and beets. With a capacity of approximately 1,000-1,200 kg/hour input, our peeling line offers efficient and streamlined processing of your products
Operation of the Peeling Processing line
Input and Weighing System: Input and Weighting System:A feed belt directs tuberous vegetables to a precise weighing bunker. Once the preset weight is reached, the input belt automatically stops, ensuring an optimized batch size.

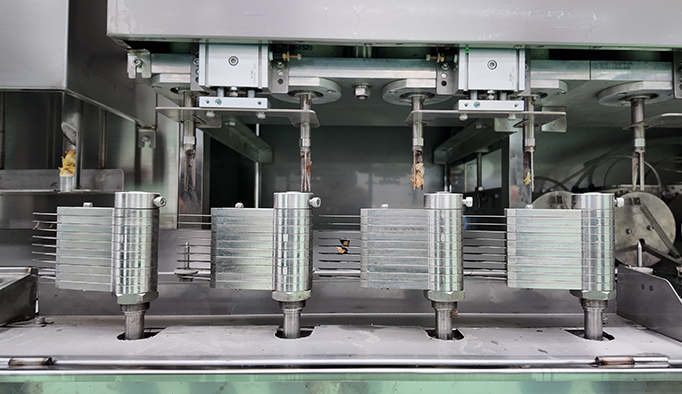

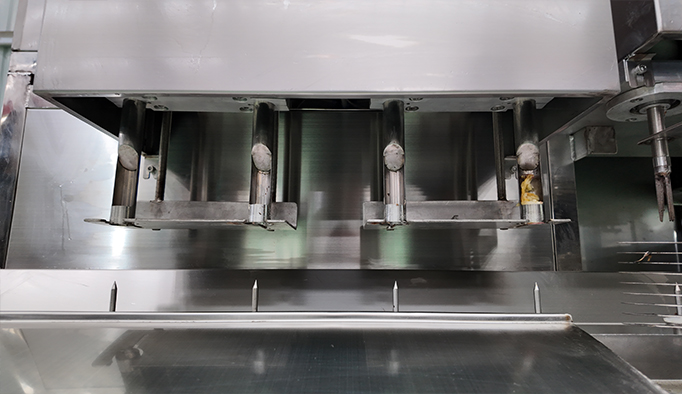

Peeling Machine: The product from the weighing bunker is carefully unloaded into the powerful peeling machine. This advanced machine ensures thorough removal of the skin, preparing your products for further processing.
Water Bunker: After the peeling process, the clean product is collected in a water bunker, ready for the next phase of processing.
Inspection and Finishing: The product is evenly distributed on an inspection conveyor, allowing for precise quality control. For an additional level of finishing, the peeling processing line can be expanded with a (double) peeler, giving your products a hand-peeled appearance.
Technical Parameter
| Model | size | weight | power | capacity |
| WX-QP-2500 | 2500*1000*1300mm | 400 kg | 4.45 kW | 500 kg/h |
| WX-QP-3000 | 3000*1200*1300mm | 600 kg | 5.25 kW | 800 kg/h |
| WX-QP-4000 | 4000*1200*1300mm | 700 kg | 6.6 kW | 1000 kg/h |
| WX-QP-5000 | 5000*1200*1300mm | 900 kg | 8.3 kW | 1500 kg/h |
| WX-QP-6000 | 6000*1200*1300mm | 1100 kg | 9.4 kW | 2000 kg/h |
Product Features
Advantages of vegetable&fruit peeling machine
Equipped with a bubble generator to make objects tumble.
Equipped with separate filter tank and water circulation system.

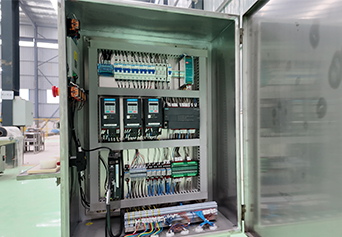

Equipped with VFD to better adjust the belt speed
High-pressure air bubbles and water jets wash away dirt, sand and other residues.
Equipped with a spray section for cleaning water, which can be cleaned twice.
The object is automatically transported to the spraying part through the conveyor belt.
Application
Peeling of various fruit: apples, pears, mango ,pineapple, watermelon,Kiwi fruit, peach, orange, tangerine, lemon, dragon fruit etc.
Peeling of various vegetable: potato, carrot, turnip, yam, red radish, beetroot, cucumber, zucchini, pumpkin, lotus root, lettuce, onion, tomato etc.
Root Vegetables
Leafy Vegetables
Fruit Materials
